De VW Passat Digitale Dash Upgrade Gids (2011-2015) & Cluster Reparatie Alternatief
Explore the definitive guide for the VW Passat digital instrument cluster upgrade. An ideal, cost-effective repair replacement for failing mechanical gauge clusters on 2011–2015 models, featuring a modern digital dash aesthetic.
Global Compatibility: Designed for original mechanical clusters. Fully supports Left-Hand Drive (LHD) en Right-Hand Drive (RHD) vehicles. Easily switchable between MPH and KM/H, making it suitable for US, UK, European, and Australian roads.
Dashboard Repair & Digital Upgrade
Are you experiencing common Passat instrument cluster failures? Dead pixels, flickering screens, or broken analog needles are frequent issues for 2011–2015 models.
Instead of paying for expensive OE component-level fixes, this LCD cluster serves as a premium Passat dashboard repair alternative. It replaces your broken mechanical unit entirely. You get a fully functional, brand-new digital speedometer upgrade without the hassle of traditional gauge repair.
Product Introduction
Transform your interior with an OEM-style virtual cockpit. Designed specifically for VW Passat PQ owners, it requires no cutting, no panel drilling, and no original data modification.
- Non-Destructive Installation: Remove the old cluster and plug in the new one. No ECU flashing and no complex coding required.
- Automotive-Grade Linux OS: Optimized specifically for Volkswagen platforms. Ensures ultra-fast boot times and long-term stability.
- 10.3-Inch HD Display: A crisp 1920×720 resolution screen. Includes multiple classic VW and Audi Virtual Cockpit UI themes.
- Seamless OEM Integration: Preserves original steering wheel controls. Displays complete body fault codes, tire pressure, and warning lights accurately.
- Global Settings: Supports multi-language menus, easy unit switching (MPH/KMH), and phone screen projection. Features OTA remote upgrades.
- Perfect Fitment: 1:1 precision-molded housing. Features a UV-resistant piano black finish to match your factory dashboard perfectly.
Pakketlijst en benodigde hulpmiddelen
Before beginning the dashboard removal, verify all components in the box. Ensure you have the complete kit ready for your digital dash conversion.

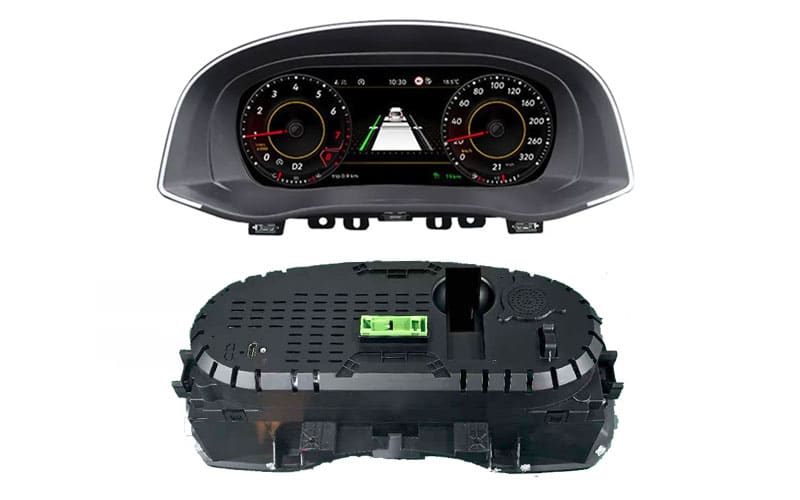

- 1x Full LCD Digital Instrument Cluster Main Unit
- 1x speciale plug-and-play kabelboom
- Montageaccessoires en schroeven
- Gereedschappen voor het verwijderen van plastic bekleding
- Screwdriver Set (Torx/Philips)
Wat moet er worden gewijzigd voordat het originele mechanische instrumentenpaneel wordt verwijderd?
Before starting the installation on a 2011–2015 Volkswagen Passat PQ, the winter-tire warning and speed warning must be adjusted first and then disabled in the multifunction display. This is the correct starting point for a smooth Passat digital instrument cluster installation and helps avoid unnecessary warning-related issues later.
Vereiste instellingsstappen
- Stel de winterbandenwaarschuwing in op de maximale waarde.
- Stel de snelheidswaarschuwing in op de maximale waarde.
- Schakel beide functies uit op het multifunctionele display.
- 01:24 — speed warning and winter-tire warning setting tutorial
Welke hulpmiddelen zijn vereist voordat u begint?
Prepare the correct trim tools and screwdrivers before disassembly. This keeps the work cleaner, reduces the risk of interior damage, and makes your Passat digital dashboard repair and upgrade easier for first-time installers to complete with confidence.
- Non-marring trim removal tools
- German-style screwdriver or Torx-compatible tool
- Microfiber towel to protect nearby trim surfaces
- Pry tool for safe disassembly of trim and panel parts
Passat Digital Dash Upgrade Guide: Step-by-Step Installation
Follow the steps below in sequence. Whether you are using this Passat digital dash upgrade guide to modernize your interior or as a reliable repair replacement for broken mechanical gauges, the process is based on a clean OEM-style conversion: remove the faulty original cluster, transfer the required factory components, and plug in the new LCD panel.

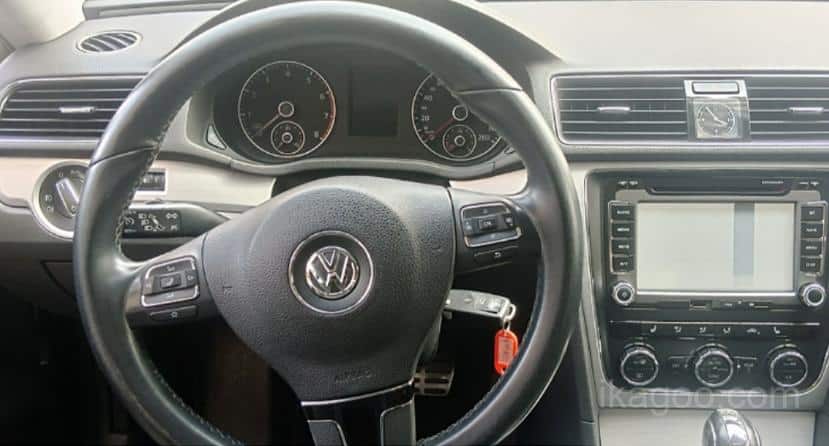

Step 1: Check the Original Vehicle Center Console Layout First
Before starting the Passat digital instrument cluster installation, review the original dashboard and instrument area carefully. This helps you understand the trim direction, clip positions, and working space around the original mechanical instrument cluster so the full LCD instrument cluster upgrade begins in a more controlled way.

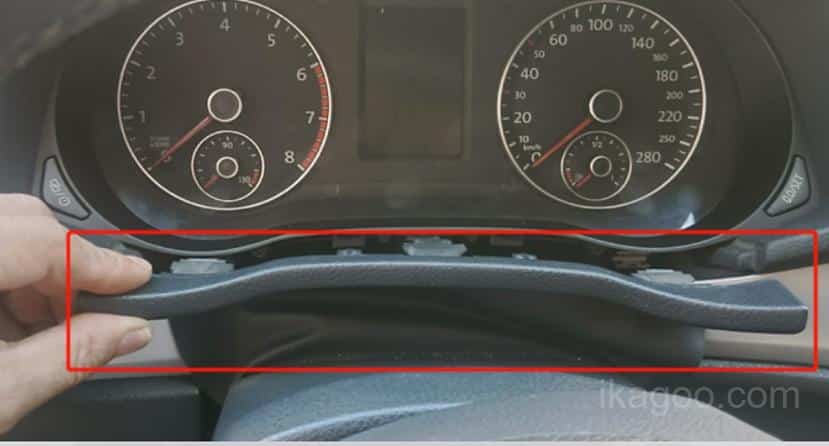

Step 2: Pry Off the Original Instrument Panel Trim Piece Carefully
Use a proper trim tool to release the original instrument panel trim piece gradually. Work from the edge with steady pressure instead of forcing one side too aggressively. A clean trim removal makes the later LCD cluster installation much easier and helps protect the dashboard finish of your 2011–2015 Passat.

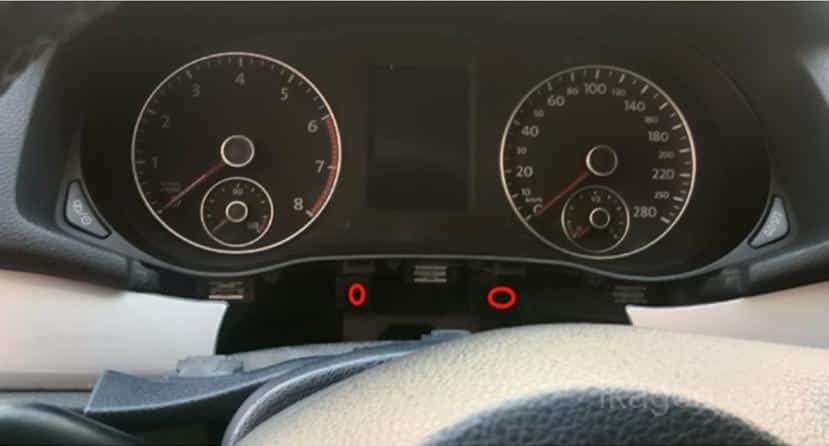

Step 3: Remove the Screws from the Original Instrument Panel
Once the trim is removed, take out the factory screws that secure the original instrument cluster assembly. Keep the screws organized. This makes the reinstallation of the digital dashboard cleaner and faster, especially when you are fitting the new Passat full digital gauge cluster later.

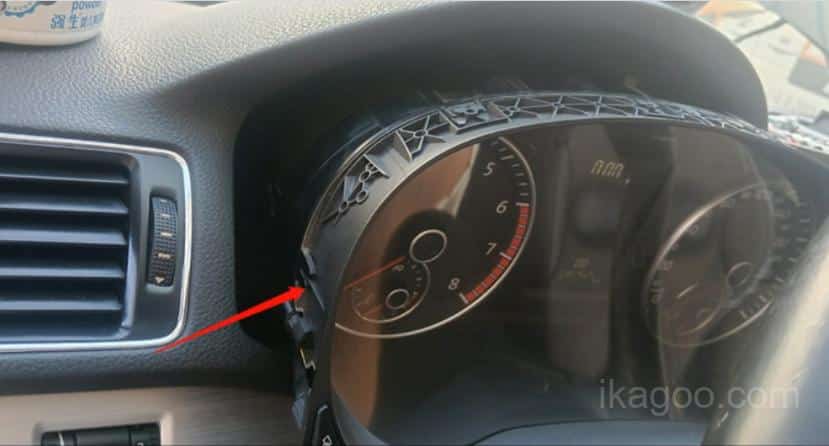

Step 4: Pry the Gauge Assembly Out of the Dashboard
With the fixing screws removed, ease the gauge assembly outward carefully. Pull the original faulty or failing instrument cluster forward evenly and avoid twisting it. At this point, the rear wiring is still connected, so controlled movement matters for a safe dashboard repair and digital conversion.

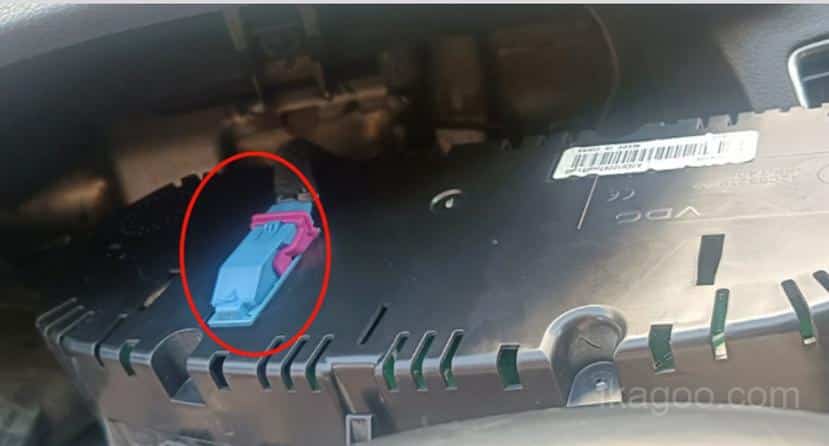

Step 5: Disconnect the Instrument Power Cable
Release the rear connector correctly and disconnect the instrument power cable from the original cluster. Do not pull on the harness itself. A clean disconnection protects the original wiring and keeps the Passat digital instrument cluster upgrade safe and repeatable.

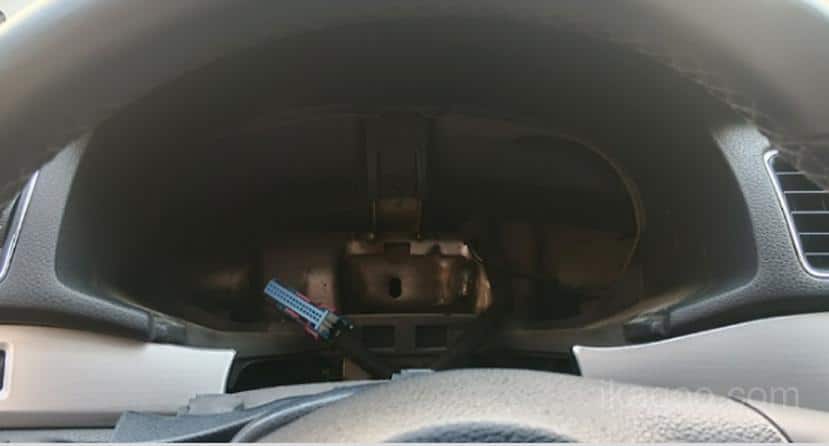

Step 6: Check the Dashboard Condition After Removal
After the original mechanical instrument cluster is removed, inspect the dashboard opening, connector area, and trim edges. This is the best time to confirm that the working area is clean and ready for the next stage of the 2011–2015 Passat PQ LCD cluster upgrade.
Step 7: Remove the Screws Securing the Original Instrument Panel Cover
Place the original cluster on a stable workbench and remove the screws securing the outer cover. Keep these screws in order. This is the beginning of the internal transfer work, and careful handling here makes the digital instrument panel conversion much smoother.
Step 8: Pry Open the Original Instrument Panel Cover
Open the original instrument panel cover slowly and evenly. Do not bend the housing aggressively. The goal is to access the internal parts cleanly while keeping the original cluster structure in good condition.
Step 9: Pry Up the Gauge Needles with the Proper Tool
Use a pry bar or suitable removal tool to lift the original gauge needles carefully. Work evenly and avoid twisting the shafts. This step should be done patiently because rough handling can damage parts that still need to be retained for the full LCD dashboard upgrade.
Step 10: Remove the Original Button Components
Pop out the original button components carefully so the internal display area can be separated properly. This is a small but important step in the instrument cluster disassembly process, and clean removal helps the later reassembly look more factory-correct.
Step 11: Take Out the Original Display Screen
Remove the original display screen carefully and store it safely. If you are following this guide to repair dead pixels or replace a broken center screen, this step permanently eliminates the faulty hardware. Protecting the surrounding original parts is still part of professional installation practice.
Step 12: Retain the Original Instrument Panel Mainboard
The original mainboard is the key retained component in this Passat digital dashboard upgrade. Handle it only by the edges and keep it intact. Reusing the factory mainboard helps the new LCD cluster and instrument cluster assembly work more naturally with the vehicle’s original logic.
Step 13: Connect the Power Cable for the LCD Display
Connect the LCD display power lead carefully and confirm that the connector is fully seated. This is a core step in the full LCD instrument cluster installation because stable power and correct connector alignment support reliable display performance later.
Step 14: Secure the Original Mainboard to the LCD Instrument Panel Frame
Mount the original factory mainboard onto the new LCD instrument panel frame and secure it correctly. This is the real integration point of the conversion. A clean installation here is what helps the Passat full digital gauge cluster feel much closer to an OEM-style solution.
Step 15: Refit the Original Instrument Panel Cover and Reconnect the Wiring
Reinstall the original instrument panel cover, reconnect the wiring, and prepare the completed digital instrument cluster assembly for final installation back into the dashboard. Correct alignment at this stage gives the full LCD cluster a cleaner and more factory-like final fit.

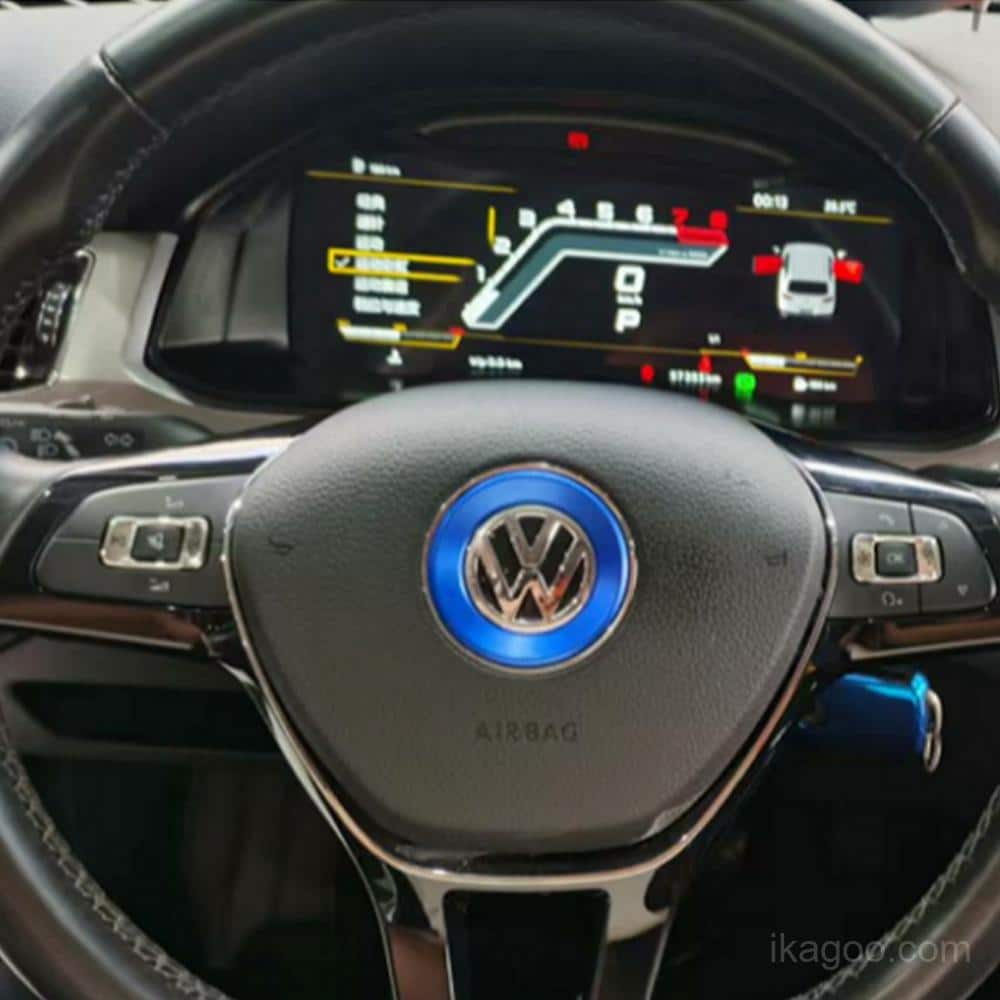

Step 16: Check the Final Installed Result
After installation is complete, confirm that the full LCD instrument cluster sits correctly in the dashboard, the trim fit is clean, and the digital dashboard display looks stable and integrated. The finished 2011–2015 Passat digital dash upgrade solves previous hardware failures while looking modern and clean.
Important Note About the Auxiliary Board for the Passat LCD Cluster
Some higher-spec original mechanical instrument clusters for the 2011–2015 Passat PQ include a small auxiliary board behind the original display. If your original instrument cluster assembly has this board, it must be fixed into the new LCD cluster correctly.
If the small board is forgotten or installed incorrectly, the fuel reading may become inaccurate and the digital instrument cluster may report a fault. This is one of the most important detail checks in the whole full LCD dashboard upgrade.
What Should Be Configured and Calibrated After the Physical Installation?
After the cluster is physically installed, the setup is not fully complete until the key post-install checks are finished. This includes warning-setting confirmation, any required auxiliary-board verification, calibration work, and any physical-light setting corrections required by the installed version.
Hoe de clustermenu's te bedienen na installatie
Before watching the configuration videos below, review these control-reference images first. They show how the steering-column controls are used to enter the main menu, move through sub-menus, and confirm settings during post-install setup and calibration.
- 01:24 - referentie voor handeling van waarschuwing-instelling
- 02:43 - referentie voor installatie van kleine hulpplaat
- Kalibratie van brandstofniveau
- Driving-data correction
- Any post-install parameter adjustment
- Instelling fysieke lichtschakelaar
- Correctie van indicator
- Controle van gedrag van display na installatie
- 04:32 - full installation tutorial

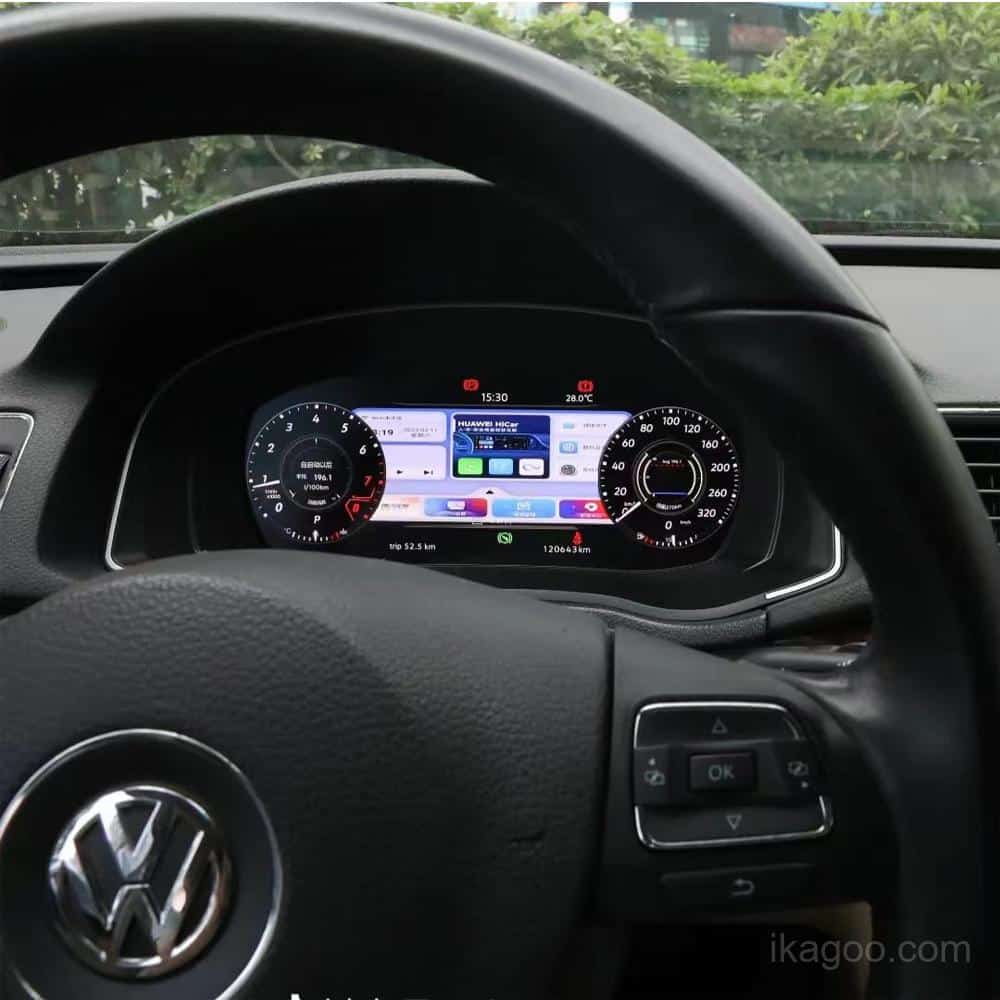

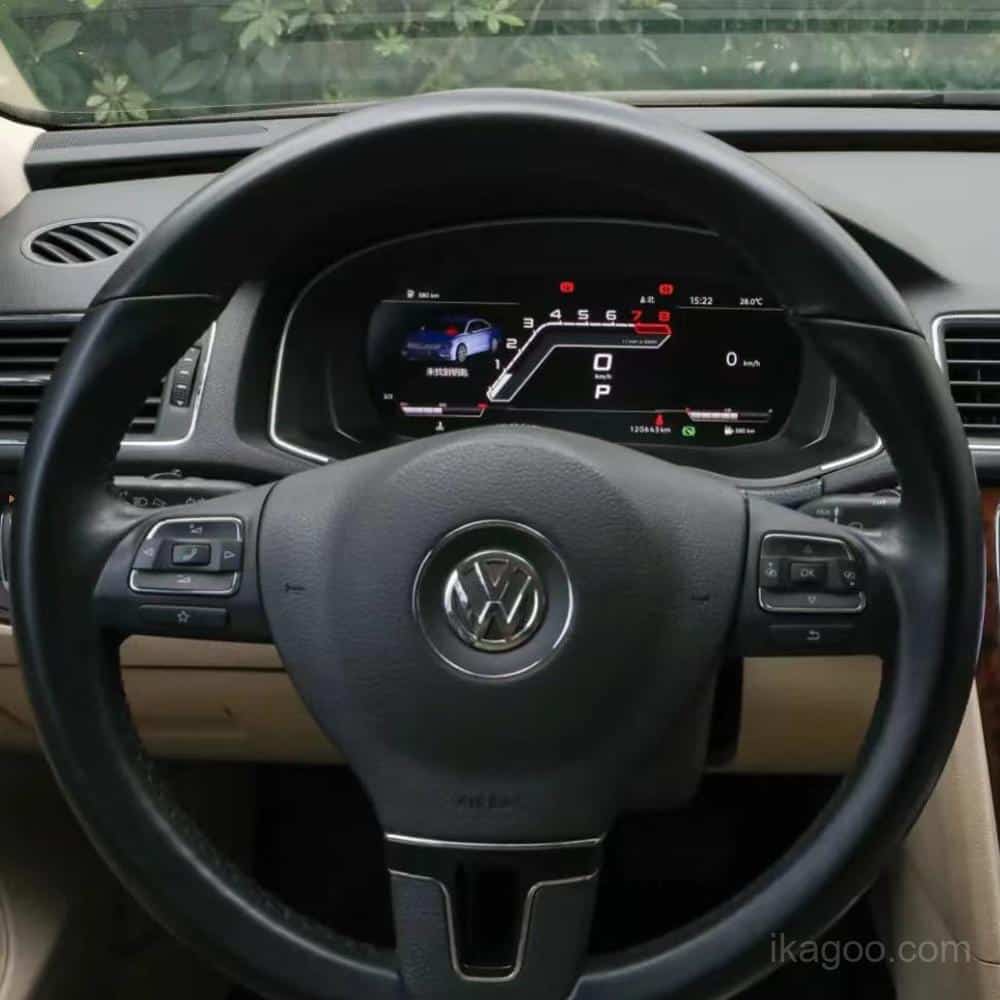

Hoe zien de uiteindelijke geïnstalleerde resultaten eruit?
After the trim frame is transferred, the motherboard is installed, the cluster is reassembled, and the post-install settings are verified, the finished dashboard should look clean, integrated, and consistent with the original interior design.
Passat Digital Dash Upgrade Guide: FAQs
To round out this Passat digital dash upgrade guide, we’ve compiled the most common questions regarding fitment, motherboard transfer, and post-install calibration. These answers will help you achieve a flawless digital transformation or a perfect gauge cluster repair.
Does this digital dash installation require wire cutting or drilling?
No. On supported 2011–2015 Volkswagen Passat PQ applications, this digital instrument cluster installation is designed around a non-destructive, plug-and-play concept that avoids drilling, wire cutting, and unnecessary ECU flashing.
Why is the original motherboard reused during the upgrade?
The original motherboard already belongs to the vehicle and helps preserve the factory anti-theft relationship, core vehicle data logic, and original communication behavior. That is why reusing the original board is a more practical and secure solution than replacing the full assembly with a generic aftermarket unit.
Can the original cluster buzzer or speaker be removed?
No. The original cluster buzzer or speaker must not be removed. If it is, the new digital instrument cluster may report a fault warning after installation.
What happens if the small auxiliary board is not transferred into the new LCD cluster?
If your original 2011–2015 Passat instrument cluster includes the small auxiliary board and it is not installed correctly in the new unit, the fuel reading may become inaccurate and report a fault. This is one of the most critical detail checks in the upgrade process.
What should be checked after the physical installation is complete?
After physical assembly, confirm the warning-setting status, verify the auxiliary board transfer, complete any necessary fuel calibration, and check that the physical-light settings are correct before finishing your installation.
Is this specific LCD cluster suitable for all Passat years?
No. This guide and specific product solution are written for 2011–2015 Volkswagen Passat PQ models equipped with the original mechanical instrument cluster. Fitment should always be confirmed by your vehicle's specific year and original cluster type.
Does it support left-hand drive, right-hand drive, diesel, and hybrid versions?
Yes. The system is designed to support both left-hand drive (LHD) and right-hand drive (RHD) vehicles, as well as diesel and hybrid variants, provided the original factory setup matches the supported mechanical configuration.
Why must the winter-tire and speed warnings be disabled before removal?
These settings must be maxed out and disabled in the multifunction display prior to removal to ensure that warning-related behavior translates correctly to the new digital system without triggering false alerts.
Can a first-time DIY installer complete this upgrade?
Absolutely. Many first-time installers successfully complete the conversion by carefully following this guide, using non-marring trim tools, protecting the fragile internal components, and strictly adhering to the post-install calibration checks.
What is the main benefit of following this Passat digital dash upgrade guide?
Beyond serving as a cost-effective dashboard repair for failing mechanical units, the main benefit is a modernized OEM-style appearance. You gain better visual presentation, advanced interface themes, and reliable functionality without losing your original vehicle data.
Can this LCD cluster be used to fix a broken or fading Passat gauge cluster?
Yes. If your original dashboard suffers from dead pixels, broken analog needles, or backlight power loss, this digital upgrade serves as a perfect Passat instrument cluster repair alternative, completely replacing the faulty display mechanisms.
